This gas valve from Right Valve® is a direct replacement for Robertshaw® Unitrol 7000MVRLC low capacity(LC) models. The cost effective and compact size of the Right Valve® EP970-B011 gas valve is equivalent to the Robertshaw® 710-508 Unitrol low capacity(LC), manual, millivolt gas valve. The Robertshaw® 700 Series Universal Gas Valves are designed for intermittent pilot ignition applications. These universal models include all the necessary parts to adapt the valves to direct spark or hot surface applications. Each valve incorporates a manual valve, pilot valve, and a main gas pressure regulator (optional by model). Robertshaw gas valve 7000 ADER-S7A 388-501-824 Lennox pulse 77C17. Robertshaw gas valve 7000 ADER-S7A 388-501-824 Lennox pulse 77C17-Used. Tested and in working condition. Generally items are shipped via Postal Service with the most economical shipping option. Larger and/or heavier items will be shipped via UPS Ground. This gas valve from Right Valve® is a direct replacement for Robertshaw® Unitrol 7000 MVLC low capacity (LC) models. The cost effective and compact size of the Right Valve® EP970-M015-710-501 gas valve is equivalent to the Robertshaw® 710-501 Unitrol low capacity (LC), manual, millivolt gas valve.

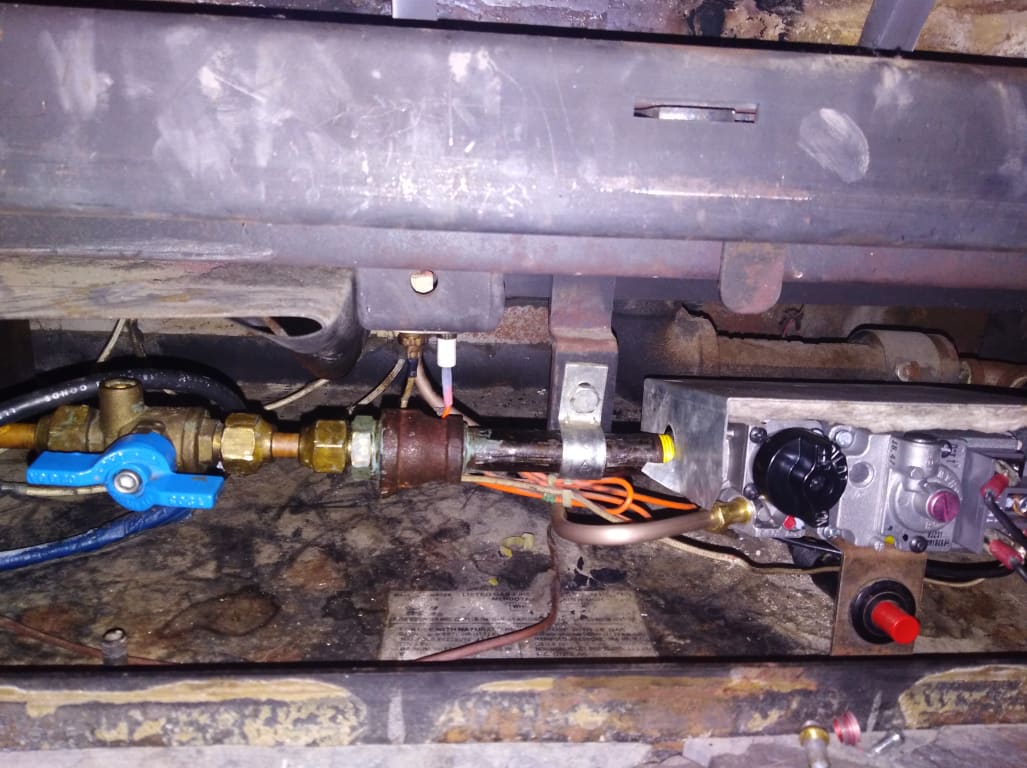

Robertshaw 7000mvrlc manual parts

Description

Specifications

See Full List On Robertshaw.com

Robertshaw 7000mvrlc manual pdf
Valve TypeSee Ordering Chart
Temperature Range (Hydraulic Models)58° to 90°F
Pilot Outlet1/4″ Tubing
Gas Cock Dial MarkingOff-Pilot-On
Maximum Ambient Temperature175°F
Maximum Capacity Natural Gas70,000 BTU
Maximum Capacity L.P. Gas112,000 BTU
Maximum Inlet Pressure14″ W.C. (1/2 PSI)
7000mvrlc
AttributeRight Valve®Robertshaw®
Competitor Part Name/Equivalents710-508
Factory Model/SeriesEP970-B0117000MVRLC

7000 MVRLC

Inlet Size3/8″3/8″
Pressure Regulator Setting3.5″ Natural Gas3.5″ Natural Gas
CommentsManual Model, Millivolt, Low Profile, Low CapacityHas Special Quick Drop cut Safety Magnet to Meet Canadian Specifications Used with Quick-Dropout Pilot Assembly 1819-100.
ApplicationPatio Heaters, Gas Logs, Fireplaces, Heaters, Fire Pits, Fireplace Log Control, Furnaces, Fryers, Commercial AppliancesPatio Heaters, Gas Logs, Fireplaces, Heaters, Fire Pits, Fireplace Log Control, Furnaces, Fryers, Commercial Appliances
Capillary LengthN/AN/A
DescriptionMillivolt Note: Use Two Lead Thermopiles and ThermocoupleMillivolt Note: Use Two Lead Thermopiles and Thermocouple
Outlet Size3/8″ Straight-thru3/8″ Straight-thru
Reducer Bushing (NPT)NoneNone

Robertshaw® 710-508 Equivalents

Manufacturer NamePart NumberRepl. TypeNotes
CANADIAN HEATING PROD732811460Exact
DEXEN6003SExact
FIREPLACE MANUFAC14414Functional
FIREPLACE MANUFAC709711461Functional
FIREPLACE MANUFAC709711461Functional
FIREPLACE MANUFAC709811461Functional
HEAT-N-GLO60-52001Functional
HEAT-N-GLO60-52002Exact
HEAT-N-GLO60-52101FunctionalAlso requires 1751-021
HEAT-N-GLO770822463FunctionalAlso requires 1751-021
HEAT-N-GLO770822463FunctionalAlso requires 1751-021
HEAT-N-GLO770822463FunctionalAlso requires 1751-021
HEAT-N-GLO770831300Functional
HEAT-N-GLO786821315Functional
HEATILATOR23363AFunctional
HEATILATOR23363CFunctional
HEATILATOR25812Functional
HEATILATOR25812AFunctionalAlso requires 1751-013
HEATILATOR770831300Functional
HEATILATOR770831460Functional
HEATILATOR770831460Functional
HEATILATOR770831460Functional
HEATILATOR770832309FunctionalAlso requires 1751-013
HEATILATOR770832463FunctionalAlso requires 1751-013
HEATILATOR770832463FunctionalAlso requires 1751-013
HEATILATOR770832463FunctionalAlso requires 1751-013
HEATILATOR770832463FunctionalAlso requires 1751-013
HI-TECK STOVESFA033BFunctional
HUSSONG MFG770821459Functional
HUSSONG MFG770821459Functional
HUSSONG MFG770821459Functional
MARCO MFG762711459Functional
MARCO MFG762711459Functional
MARCO MFG762711459Functional
MARCO MFG762711459Functional
MARCO MFG762711459Functional
MARCO MFG762711459Functional
MARCO MFG762711459Functional
MARCO MFG762711459Functional
MARCO MFGL116167AFunctional
MARINE TECH.INC(MTI)60-521FunctionalAlso requires 1751-021
PRECISION GAS TECHNOLOGIES60-520Functional
PRECISION GAS TECHNOLOGIES770821315Functional
PRECISION GAS TECHNOLOGIES770821315Functional
PRECISION GAS TECHNOLOGIES770822309FunctionalAlso requires 1751-021
RASMUSSEN6003S -3.5Functional
ROBERTSHAW762-711-459Exact
SUPERIOR FIREPLACE762811459Functional
SUPERIOR FIREPLACE762811459Exact
SUPERIOR FIREPLACE762811459Exact
SUPERIOR FIREPLACE762811459Exact
SUPERIOR FIREPLACE762811459Exact
SUPERIOR FIREPLACE901196Functional
SUPERIOR FIREPLACE901197FunctionalAlso requires 1751-013
TEMCO FIREPLACE1A71566Functional
TRAVIS INDUSTRIES762815448FunctionalAlso requires 1751-007
UNKNOWN732711460Exact
UNKNOWN762715448FunctionalAlso requires 1751-007
UNKNOWN762812463FunctionalAlso requires 1751-013
UNKNOWN770821460Functional
UNKNOWN770822455FunctionalAlso requires 1751-021
UNKNOWN770822472FunctionalAlso requires 1751-021
UNKNOWN779831460Functional
UNKNOWN786822309FunctionalAlso requires 1751-021
UNKNOWN792821315Functional
WOLF RANGEWS-725-027Exact

Description

Specifications

Valve TypeSee Ordering Chart
Temperature Range (Hydraulic Models)58° to 90°F
Pilot Outlet1/4″ Tubing
Gas Cock Dial MarkingOff-Pilot-On
Maximum Ambient Temperature175°F
Maximum Capacity Natural Gas70,000 BTU
Maximum Capacity L.P. Gas112,000 BTU
Maximum Inlet Pressure14″ W.C. (1/2 PSI)
AttributeRight Valve®Robertshaw®
Competitor Part Name/Equivalents710-509
Factory Model/SeriesEP970-A0527000MVRLC-LP

7000 MVRLC-LP

Inlet Size3/8″3/8″
Pressure Regulator Setting10.0″ L.P. Gas/Propane10.0″ L.P. Gas/Propane
CommentsManual Model, Millivolt, Low Profile, Low CapacityManual Model, Millivolt, Low Profile, Low Capacity
ApplicationPatio Heaters, Gas Logs, Fireplaces, Heaters, Fire Pits, Fireplace Log Control, Furnaces, Fryers, Commercial AppliancesPatio Heaters, Gas Logs, Fireplaces, Heaters, Fire Pits, Fireplace Log Control, Furnaces, Fryers, Commercial Appliances
Capillary LengthN/AN/A
DescriptionMillivolt Note: Use Two Lead Thermopiles OnlyMillivolt Note: Use Two Lead Thermopiles Only
Outlet Size3/8″ Outlets(3)3/8″ Outlets(3)
Reducer Bushing (NPT)NoneNone
Valve

Robertshaw | Products | 7000

Robertshaw 7000mvrlc Manual

Robertshaw® 710-509 Equivalents

Robertshaw Gas Valve Model 7000

Manufacturer NamePart NumberRepl. TypeNotes
COUNTRY STOVE760717457Functional
COUNTRY STOVE760717457Functional
DEXEN6003Functional
EMPIRE COMFORT SYS.746717482Functional
EMPIRE COMFORT SYS.R3319Functional
ENGLANDS STOVE WORKSGU-4LCNGFunctional
FIREPLACE MANUFAC711817447Functional
HEAT-N-GLO40-50102Functional
HEAT-N-GLO40-501A01Functional
HEAT-N-GLO762817474Functional
HEAT-N-GLO784827308Functional
HEAT-N-GLO786827310Functional
HEATILATOR25811Functional
HEATILATOR711717447Functional
HEATILATOR715817442Functional
HEATILATOR762717473Functional
HEATILATOR762817473Functional
HEATILATOR769827442Functional
HEATILATOR769837308Functional
HEATILATOR769837442Functional
MAJESTIC711717445Functional
PORTLAND WILLAMETTE760817457Functional
PORTLAND WILLAMETTE80-0016-35-0046-00Functional
PRECISION GAS TECHNOLOGIES40-501AFunctional
PRECISION GAS TECHNOLOGIES768827457Functional
PRECISION GAS TECHNOLOGIES768827457Functional
ROBERTSHAW711-702-425Exact
STAR MFG.CO.2JY9268Functional
SUPERIOR FIREPLACE768837445Functional
SUPERIOR FIREPLACE99644Functional
UNKNOWN709717486Functional
UNKNOWN709817329Functional
UNKNOWN709817479Functional
UNKNOWN709817486Functional
UNKNOWN711717487Functional
UNKNOWN711817444Functional
UNKNOWN711817487Functional
UNKNOWN715717442Functional
UNKNOWN762717457Functional
UNKNOWN762717474Functional
UNKNOWN762817457Functional
UNKNOWN768827308Functional
UNKNOWN768837308Functional
UNKNOWN768837444Functional
UNKNOWN786827474Functional
UNKNOWN786827498Functional
UNKNOWN790817329Functional
UNKNOWN792827360Functional
UNKNOWN792827498Functional
UNKNOWN792837482Functional
UNKNOWN793837482Functional
UNKNOWN794837482Functional
VERMONT CASTINGS1601762Functional
VERMONT CASTINGS709817488Functional
VERMONT CASTINGS709817489Functional
VERMONT CASTINGS768827476Functional
WOLF RANGE709817482Functional
WOLF RANGE784827329Functional
WOLF RANGE786827329Functional
